中国Mv ケーブル ジョイントメーカー、サプライヤー、工場

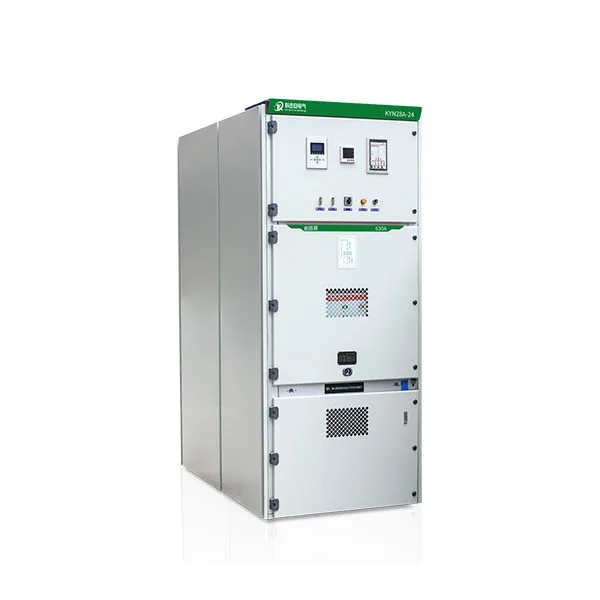

KYN28-12(Z) AC 金属装甲開閉装置 7.2KV 630A カスタマイズ電気開閉装置は、定格電圧 12kV、定格周波数 50Hz の三相 AC 電源システムで使用するように設計されています。電気エネルギーの受信と分配だけでなく、回路の制御、保護、監視にも最適です。

The 145KV Outdoor high-voltage SF6 open type combination electrical appliances stands out as an integrated electrical device specifically designed for high-voltage power transmission and distribution systems. Its unique composition includes circuit breakers, disconnectors, earthing switches, current transformers, voltage transformers, and surge arresters, all enclosed in a metal housing filled with sulfur hexafluoride (SF6) gas, a highly effective insulating medium.

The 126KV 1600A Outdoor high-voltage SF6 tank circuit breaker is a sophisticated electrical switching solution designed to safely disconnect high-voltage electrical paths in emergency situations or for regular maintenance. It employs sulfur hexafluoride (SF6) gas as a fire-suppressing and insulating agent, housed within a hermetically sealed container. This particular type of circuit breaker is purpose-built for exterior installation in electrical substations and power distribution systems.

低電圧インテリジェント電力品質ハイブリッド補償キャビネット (デバイスの完全なセットを組み合わせた後) がキャビネットに設置され、受電回路ブレーカーと高速溶解が装備されています。コンデンサ容量は 5kvar ～ 60kvar の任意の組み合わせが可能です。 50A (35kvar)、100A (70kvar)、および 100kvar の容量を持つ APF または SVG モジュールはオプションです。通気過流メッシュホールを備えた背面通気設計。

126KV 1250A Neutral point disconneetor is specifically engineered for application in high-voltage transmission lines operating under no-load conditions. Its primary function is to provide electrical isolation during the maintenance of circuit breakers and other associated equipment, thereby ensuring compliance with insulation distance requirements and enhancing overall operational safety.

The The GW8 series neutral point disconnecting switch is an outdoor device designed for use with AC 50Hz and 60Hz. It is intended to connect the neutral point of a transformer under no load conditions. The switch can be easily operated using either the CJ motor operating mechanism or the CS8 manual operating mechanism. Comprising a monopole and an operating mechanism, the GW8 series ensures smooth and hassle-free operation. The monopole includes a base, post-insulator, conductive arm, contact, and other components. The operating mechanism, whether it's the CJ motor operating mechanism or the CS8 manual operating mechanism, is crucial to the disconnecting switch process. It drives the conductive arm through the connecting rod, enabling the opening and closing of the disconnecting switch. is an outdoor device designed for use with AC 50Hz and 60Hz. It is intended to connect the neutral point of a transformer under no load conditions. The switch can be easily operated using either the CJ motor operating mechanism or the CS8 manual operating mechanism. Comprising a monopole and an operating mechanism, the GW8 series ensures smooth and hassle-free operation. The monopole includes a base, post-insulator, conductive arm, contact, and other components. The operating mechanism, whether it's the CJ motor operating mechanism or the CS8 manual operating mechanism, is crucial to the disconnecting switch process. It drives the conductive arm through the connecting rod, enabling the opening and closing of the disconnecting switch.
